When I first set up the Fosi Audio ZH3 on my desk, I expected a competent all-in-one desktop DAC and headphone amplifier, but nothing more. What I found instead was a seriously capable unit that combines design elegance, smart engineering, and a sound signature that punches far above its price. The ZH3 is not just another DAC amp - it’s one of those rare affordable components that manage to feel like a complete, well-thought-out system on their own.
Fosi ZH3
Unboxing and First Impressions
The packaging immediately gave me confidence in what I was about to experience. The box is sturdy, the layout neat, and the presentation simple yet professional. Inside, I found the ZH3 unit, a 12V power supply, USB A to C cable, trigger cable, 6.35mm to 3.5mm adapter, and a full-function infrared remote. Even small details, like a pull tab on the USB cable, showed attention to usability.
The amplifier itself feels premium. Its CNC aluminum housing gives it a sleek, modern presence that’s right at home on a minimalist desk setup. I received the version with the special anniversary knob - shaped like the number eight - but the standard orange aluminum knob looks just as stylish. The single knob acts as power switch, volume control, and menu navigator, and though it’s not heavy enough to stay perfectly stable when operated with one hand, the tactile feedback and click steps feel excellent.
The round color display on the front is one of the nicest I’ve seen in this price range. It’s bright, readable at a distance, and clearly shows input, sample rate, output mode, tone settings, and more. For quick adjustments, the remote makes operation even easier - ideal if you’re using it as a preamp or DAC in a larger setup.

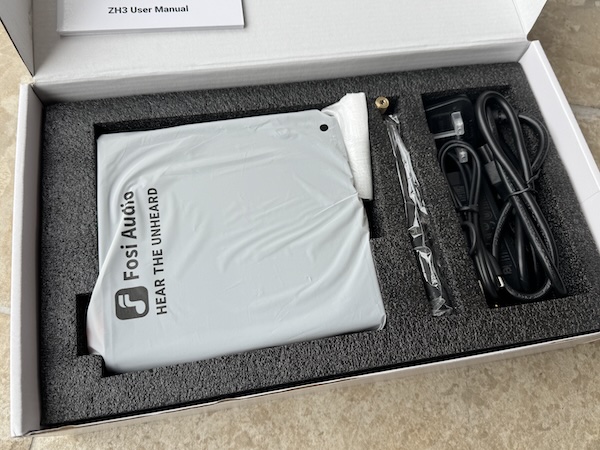

Fosi ZH3 unboxing
Build and Connectivity
The ZH3’s back panel offers an impressive range of connections. You get RCA and XLR analog outputs, coaxial and optical digital inputs, a USB-C input that supports up to PCM 32-bit/768 kHz and DSD512, as well as 12V trigger in and out. The trigger feature is thoughtful - if you’re using multiple Fosi components, like the ZP3 preamp or ZA3 power amp, the system can power on and off in sync.
On the front, you have a 6.35mm single-ended headphone jack and a 4.4mm balanced output, both well implemented. The single-ended output delivers up to 640 mW at 32 ohms, while the balanced output reaches a robust 2.57 watts at 32 ohms, enough to drive most full-size headphones, including planars that typically demand more current.
The internal architecture is equally solid: XMOS XU316 USB processor, AKM 4493 SEQ DAC chip, and four OPA1612 op amps. The ZH3 also allows op amp rolling through sockets - I tried swapping in Burson V6 Classics, and they fit perfectly, which shows how much thought went into accessibility and upgrade potential.

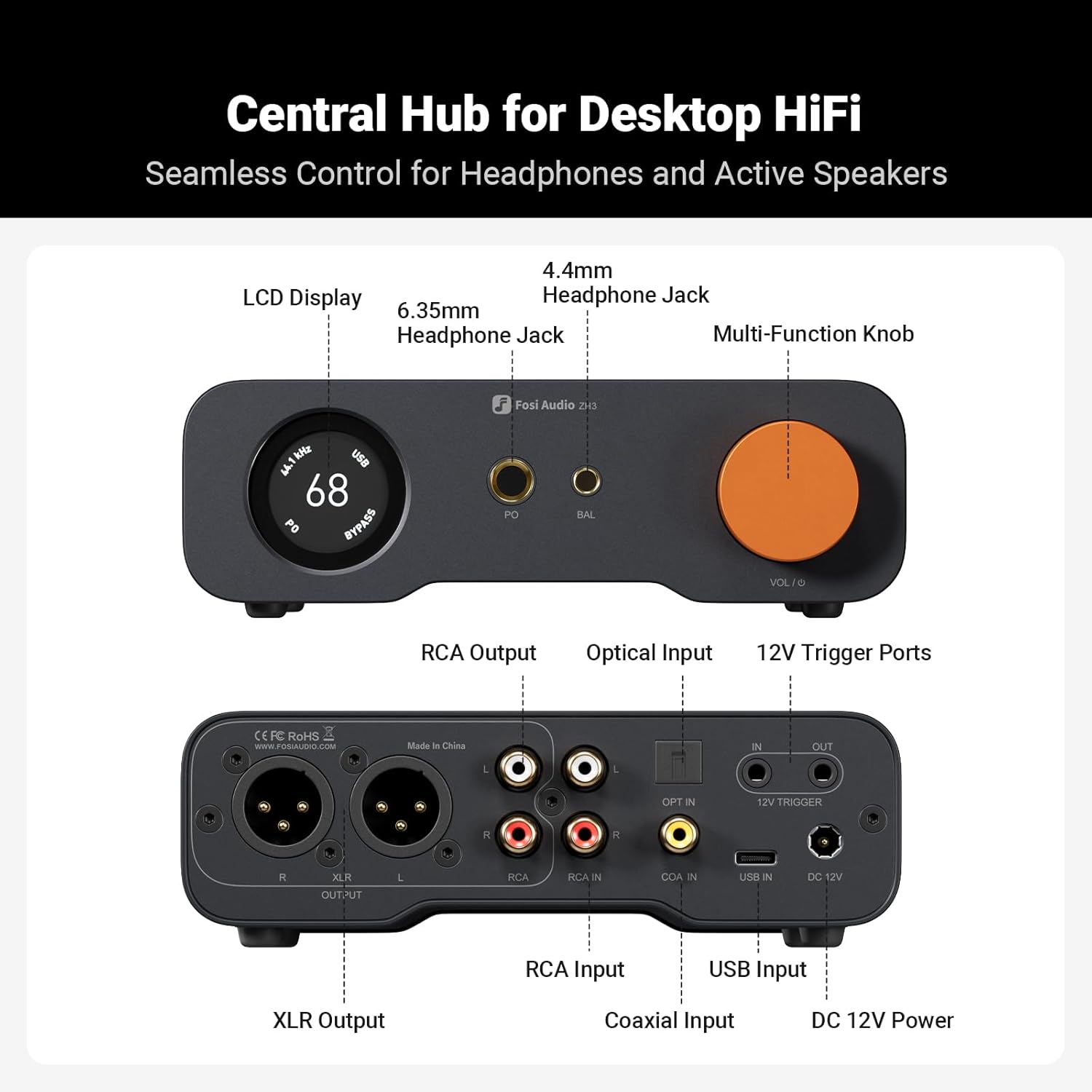

Fosi ZH3 connectivity
User Interface and Features
Once powered up, the ZH3 boots to a clean interface showing the input source, sample rate, and volume. A single press of the knob opens the menu, double press exits, and a long press turns the device off. Navigating through the menu reveals several useful options: input selection (USB, coaxial, optical, RCA), output mode (headphone, auxiliary, or line out), bass and treble adjustment, three gain levels, USB mode (UAC 1.0 or 2.0), and digital filter selection.
Tone control is available when using headphone mode, allowing up to ±12 dB for bass and ±10 dB for treble. The adjustments are digital, and admittedly slow - changing from minimum to maximum can take over ten seconds. It’s best treated as a set-and-forget feature rather than something to tweak per track. You can bypass tone controls altogether for the cleanest signal path.
The three gain settings - low, medium, and high - make it easy to pair with anything from ultra-sensitive IEMs to demanding planars. In high gain mode, the ZH3 wakes up even the most current-hungry headphones with confidence, while in low gain, it remains whisper-quiet and free from hiss when driving sensitive in-ears.
Filters and DSP Options
The ZH3 offers six digital filters derived from the AKM chip’s internal options but renamed with more intuitive labels: Precise Analytical, Powerful Dynamic, Natural Balanced, Extended Highs, Well Defined, and Natural Smooth. Each subtly reshapes the sound’s transient and tonal behavior.
The differences between filters are small but audible if you listen closely. Precise Analytical is the most neutral and transparent, while Natural Smooth rolls off the upper treble a bit, giving a warmer presentation. Powerful Dynamic adds a little extra energy in the highs and a slight sense of punch. I found myself gravitating toward Precise Analytical for reference listening and Natural Smooth for long sessions with vocal or jazz tracks.
Interestingly, when all filters are disabled via the bypass setting, a faint background noise becomes audible on very sensitive IEMs. Turning the filters back on restores a perfectly black background. It’s a quirk worth noting - the filters here are not just tonal options but also part of how the circuit manages noise performance.
Power and Measurements
According to both published specs and independent measurements, the ZH3’s technical performance is stellar for its class. The balanced output achieves over 113 dB SINAD, a signal-to-noise ratio of 119 dB, and total harmonic distortion below 0.0002%. These are figures you’d expect from gear costing significantly more.
The balanced output delivers up to 2.57 watts per channel into 32 ohms, while the single-ended provides 640 mW per channel. Into higher impedances like 300 ohms, it still offers clean headroom and authority. The noise floor is impressively low - only a few microvolts - ensuring that even at idle the amplifier remains completely silent with most headphones.
The 12V power supply included in the box is better than what Fosi shipped with earlier models like the ZD3, and it can be upgraded with a linear supply for enthusiasts chasing the last drop of refinement.
Listening Impressions
After a few days of listening across different genres, the ZH3 won me over with its clean yet musical presentation. I paired it with several headphones - the Hifiman Ananda, Sennheiser HD600, Meze 105, Fiio FT7, and Fosi Audio i5 planar - and the amp handled all of them with ease.
Tonal Balance
The sound signature leans slightly to the warm and smooth side, typical of AKM’s “Velvet Sound” DACs, but it never feels veiled. It combines precision with a sense of natural flow that makes long listening sessions fatigue-free. Voices are presented with a lifelike texture and body - male vocals sound rich and full, while female vocals have air and sparkle without sibilance.
The midrange is clean, with enough harmonic density to make instruments like violins and pianos sound full-bodied rather than clinical. Compared to some ESS-based DACs I’ve used, the ZH3 trades analytical sharpness for a more organic coherence. It feels musical rather than surgical.
Bass and Dynamics
The bass performance is excellent. It’s tight, controlled, and digs deep when called for. On electronic tracks with heavy sub-bass, it stays composed, never bloated or muddy. Planar headphones in particular benefit from the balanced output, which unleashes punch and authority that you don’t expect from a small desktop amp.
Treble and Air
The treble is refined and extended but never piercing. With the filters engaged, cymbals and percussion have a natural shimmer and decay, with just the right amount of sparkle. It’s not as ultra-detailed as something like the Topping DX5, but it’s much more relaxed and inviting for long-term listening.
Soundstage and Imaging
The soundstage is moderately wide and has a believable sense of space. It doesn’t exaggerate width but layers instruments convincingly with good separation. The depth is also notable - orchestral recordings show precise front-to-back layering, and live performances feel immersive.
Noise and Pairing Notes
In low gain mode, even my most sensitive IEMs remained silent. When switching to high gain with planars, the amplifier maintained composure without adding hiss or distortion. The only minor limitation is that the single-ended output feels noticeably weaker; for best results, I recommend using the balanced connection whenever possible.
Inside the ZH3
Opening the unit reveals a tidy, well-organized layout. The op amps are socketed for easy replacement, the DAC section is shielded, and the PCB uses quality resistors and capacitors. The engineering is clean and professional, with short signal paths and a solid internal power design. The build inspires confidence that this is a product made for enthusiasts, not just consumers.
Real-World Use
Over the past week, I’ve used the ZH3 not only as a headphone amplifier but also as a DAC feeding my active monitors through the XLR outputs. Switching between headphone mode and preamp mode is seamless, and the remote makes it easy to control volume and inputs without leaving my chair.
The inclusion of trigger in and out is another practical advantage - something rarely seen at this price. In my setup, it powered on in sync with my power amp, making daily use incredibly convenient.
Conclusion
After extensive testing, I can confidently say that the Fosi Audio ZH3 is one of the most impressive desktop DAC/amp combos available under $200. It brings together clean design, powerful balanced output, and a sound that’s both technically accomplished and musically satisfying.
It’s versatile enough to serve as the centerpiece of a headphone setup, a DAC/preamp for powered speakers, or part of a full Fosi Audio stack. The ability to roll op amps, adjust tone and filters, and connect almost anything makes it a true all-rounder.
While I would love to see a slightly heavier chassis and a faster tone control interface, those are small complaints compared to what the ZH3 delivers. For the price, this is an incredible piece of gear that stands shoulder to shoulder with products costing twice as much.
Verdict: A compact powerhouse that combines finesse, functionality, and fun - the Fosi Audio ZH3 has earned a permanent spot on my desktop.
