Finding the right DAC for a desktop or living room audio setup is always a balance between performance and simplicity. I have tested many devices that promise the world but add too many features that do not actually improve the listening experience. Some people has the goal to find equipment that provides the best result with the least complication. When I received the SMSL D1 I immediately knew it was designed for this mindset. It focuses almost entirely on sound quality first by leaving out extras that would raise the cost.
The SMSL D1 is a tiny machine. I can hold it in one hand and it still feels sturdy thanks to the full aluminum chassis. It gives me instant confidence that although it is small it means serious business inside. There is no display. No remote. No menu layers to fight through. Just what I need to convert a clean digital signal into music without distraction.
SMSL D1 DAC
Specifications
| Feature | Specification |
|---|---|
| DAC Chip | ROHM BD34352EKV |
| USB Controller | XMOS XU316 |
| PCM Support | Up to 32 bit 768 kHz |
| DSD Support | Up to DSD512 |
| Inputs | USB C, Coaxial, Optical |
| Outputs | RCA Stereo |
| Signal to Noise Ratio | 119 dB |
| THD + Noise | Approx 0.00038 percent |
| Dimensions | 101 x 90 x 33 mm |
A New Approach With the BD34352EKV DAC Chip
One of the biggest reasons I wanted to test this model is the DAC chip inside. Instead of using the more common ESS or AKM chips SMSL chose the BD34352EKV from ROHM. I had curiosity because this chip has shown up only in a few products so far but many respected reviewers point out that it offers a unique sound character. The chip supports PCM up to 32 bit 768 kHz and DSD512 through USB which means there is no technical barrier for high resolution audio playback.
In use I noticed that the SMSL D1 takes advantage of what this chip is capable of. It does not force any artificial coloration. The presentation stays natural and realistic. It is almost like the DAC simply steps out of the way and allows the music to speak with its own structure and energy.
A Minimalist Connection Strategy

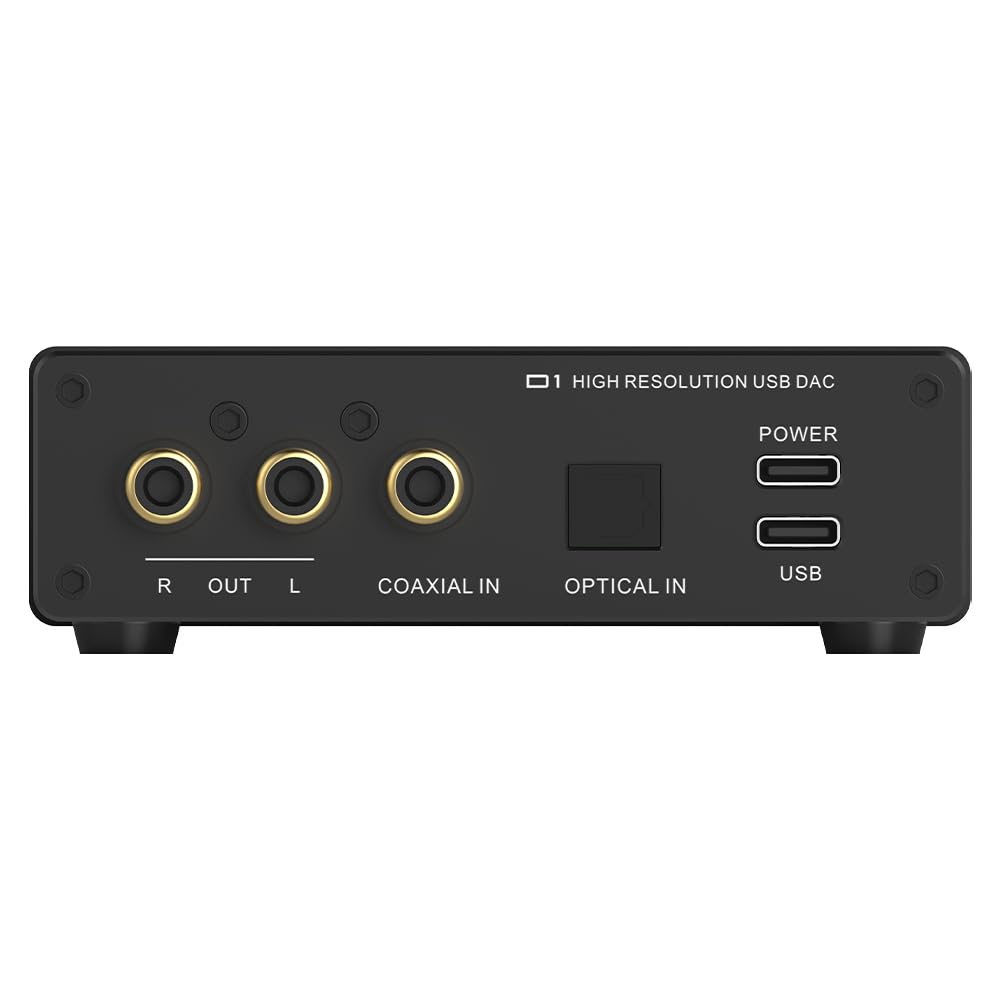

Around the back I find just what is needed. One RCA analog output for feeding an external amplifier or active speakers. Three digital inputs optical coaxial and USB. Two USB C connectors exist one for power and one for data. I enjoy this separation because it reduces the risk of noise traveling from the power source into the audio signal path. Some other budget DACs try to power everything from the same line and that often creates audible noise or texture loss. Here I can give it clean power and keep the data path isolated.
For testing I connected it to different amplifiers and never had an issue with handshake or dropout. It also accepts optical input very well which is helpful when I use a TV or game console. Nothing complicated. Plug it in select the input on the front and music starts instantly.
SMSL D1 DAC inputs
Touch Controls Simplicity With Small Limitations
Instead of physical buttons the SMSL D1 uses touch sensors on the front glass. I need only a small tap to cycle through inputs or press the power area to switch it on or off. The touch response works fine once I get used to it. In the first minutes it feels a little sensitive especially since the glossy front attracts fingerprints. But after regular use I forget this and everything becomes smooth.
Some users experienced unstable behavior on very early models but newer units seem improved. If someone strongly prefers tactile hardware buttons other SMSL budget models might fit better. For me the benefit is a very clean front face with no distractions.
Build Quality That Exceeds Its Price
Inside the SMSL D1 the design reveals careful attention to performance. The XMOS USB controller handles digital communication. The board is clean and well arranged with several op amps in the output stage to shape the signal path properly.
All this comes in a device that is roughly the size of a typical portable hard drive. Despite that compact form the D1 never feels fragile. It gives that feeling that I can install it once and leave it there for years without worry.
The Sound Experience
Now for the most important part. How does it sound in my daily listening system
I describe the SMSL D1 as natural and engaging with an impressive sense of space for such an affordable DAC. It does not try to make the sound analytical or bright just to appear detailed. Instead it lets instruments breathe with a relaxed energy.
Bass
The bass stays controlled with a solid foundation. It does not exaggerate impact yet still provides convincing presence in acoustic recordings. There is no unnecessary bloom into the midrange. Everything stays clean and true to the recording.
Midrange
Vocals are one of the biggest strengths of the D1. Male and female voices both maintain natural tone and never become nasally or harsh. The midrange is slightly warm which works beautifully with jazz rock and classical recordings.
Treble
High frequencies stay smooth without any sharp edges. The top end holds enough detail so that cymbals strings and harmonics come through clearly but always remain easy to listen to for long sessions.
Soundstage and imaging
This is where the SMSL D1 surprised me the most. The stage opens with width and a sense of three dimensional depth far beyond what I expect from an eighty dollar DAC. I never feel trapped in narrow sound placement. Spacious live tracks and ambient music gain a stronger emotional effect.
Comparison With Other Budget DACs
SMSL has other popular options in this price range like the SU1 and PS200. Both use more familiar DAC chips and both deliver excellent technical measurements. However the D1 stands out for musical engagement.
The SU1 offers the most neutral and clean approach. The PS200 feels more detailed and energetic. The D1 maintains detail but adds a more convincing and atmospheric stage that feels closer to real life listening.
Some people say that if you already own the SU1 or PS200 it can still be worth upgrading to the D1 just for the soundstage advantage. I agree because the emotional experience matters more to me than a small difference in measurement charts.
Compatibility and Use Cases
The SMSL D1 works perfectly in a small desktop setup a TV audio upgrade or even a gaming system. When I connect it to a good pair of active speakers or a quality headphone amplifier it unlocks a satisfying improvement over the internal converters found in computers and televisions. It gives better clarity definition and separation.
If someone prefers listening directly to speakers from a smartphone or laptop this device becomes an immediate step up. It does its job and quietly stays out of the way.
Not a Complete System by Itself
This model is a pure DAC. It does not include a headphone amplifier or volume control. I must use it with an amplifier that has analog volume steps. This makes sense because including those components would raise the price and size. I like that the D1 focuses its budget on the DAC stage only.
As long as that fits the plan the result is excellent.
Who Should Consider the SMSL D1
I recommend this device to anyone who:
- Wants a very compact DAC for a minimal system
- Prefers a natural and musical sound
- Does not need Bluetooth or MQA
- Uses a high quality amplifier or active speakers
The SMSL D1 is also a great option if you want to experiment with the ROHM chip family without spending a large amount of money. It reveals a different character from DACs using ESS or AKM chips. I find the tone more inviting with a pleasant balance between clarity and warmth.
Final Thoughts
The SMSL D1 proves that great sound does not require a large device with too many functions. There is beauty in simplicity when the foundation is executed well. After weeks of listening I enjoy the consistency. Every time I hit play I know that I will receive a clean precise and musical signal.
This is a DAC that prioritizes the music itself. It easily earns a place in my collection as one of the best values in its class. When I want to connect something quickly and enjoy a pure digital to analog conversion without distraction the D1 is now one of my first choices.
If you are assembling a compact but serious audio system this little box can surprise you in the best way possible. It is proof that thoughtful engineering still wins even at an accessible price point.
